For maritime engineers, custom shipbuilders, and vessel refit specialists, integrating reliable climate control into compact watercraft is a formidable engineering challenge. Unlike sprawling mega-yachts or massive commercial ships, smaller vessels possess severely restricted engine rooms, limited payload capacities, and strict electrical generation limits. Historically, these constraints meant that operators of compact center consoles, sportfishers, and small cruisers had to sacrifice internal climate comfort entirely. However, the maritime HVAC industry has evolved, developing highly specialized cooling solutions that deliver precise thermal regulation without requiring massive electrical grids or extensive physical footprints. This allows for longer voyages with significantly improved crew endurance. For professionals outfitting these confined spaces, understanding the specific operational dynamics of sub-12,000 BTU units is absolutely essential. This comprehensive guide explores the structural nuances, capacity sizing logic, and advanced engineering that define modern compact marine cooling, ensuring that builders and operators make highly informed equipment selections.
Why Capacity Sizing is Critical for Small Boat Air Conditioning Systems
When specifying climate control for a confined maritime cabin, precise capacity matching is the most important metric. In the realm of small boat air conditioning systems, bigger does not equate to better. If an engineer installs a massive 16,000 BTU unit in a compact V-berth or a small pilot house, the system will rapidly cool the ambient air and shut down before it has the opportunity to extract residual humidity. This phenomenon, known as short-cycling, creates a cold but clammy and uncomfortable cabin environment. Conversely, an underpowered unit will run continuously without ever reaching the targeted thermostat temperature, causing severe mechanical wear and excessive electrical draw. Therefore, options under 12,000 BTU—specifically those in the 6,000 to 9,000 BTU range—represent the ideal capacity sweet spot. They provide enough thermal exchange to cool the space efficiently while running long enough to effectively dehumidify the damp marine air, creating a truly comfortable interior.
Overcoming Spatial and Environmental Constraints
Outfitting a smaller vessel requires navigating extreme spatial limitations. Equipment must seamlessly integrate beneath seating, inside cramped utility lockers, or within shallow galleys. Because these units are installed in such close proximity to passenger sleeping quarters and living spaces, acoustic management is paramount. A loud, rattling compressor will easily ruin the onboard experience. Therefore, premium small boat air conditioning systems must incorporate heavy sound-dampening insulation and advanced anti-vibration chassis mounts to guarantee whisper-quiet operation.
Furthermore, these compact units must survive the same aggressive, corrosive environments as their larger counterparts. Seawater, constant salt spray, and extreme bilge humidity will rapidly destroy standard components. To ensure longevity, professional-grade maritime units bypass standard aluminum or exposed steel, heavily utilizing specialized, marine-grade metallurgy to protect sensitive internal electronics and prevent catastrophic, rust-induced mechanical failures during extended offshore deployments.
High-Performance DC Cooling: Evaluating the 9,000 BTU Configuration

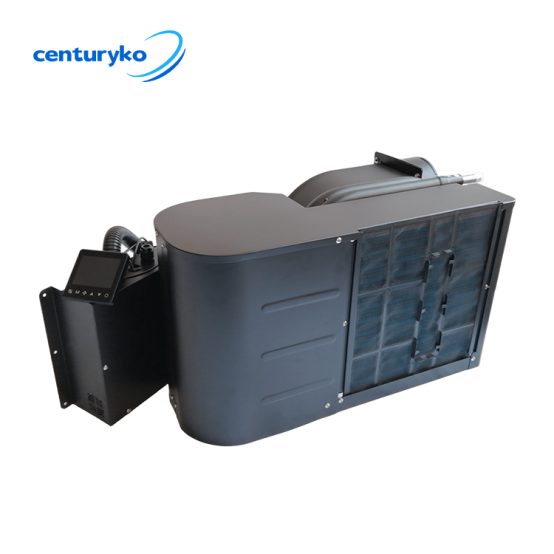

To truly grasp the capabilities required for confined marine spaces, professionals must evaluate the specific engineering details of industry-leading hardware. A strong candidate centers on high-efficiency DC-powered units. These are available in native 12V DC (MAR-12V/09BP), 24V DC (MAR-24V/09BP), and 48V DC (MAR-48V/09BP) configurations, making them well-suited for battery-driven, off-grid vessels. This direct-current design effectively embodies the durability required for rough offshore operations. To combat the highly corrosive nature of raw seawater, the system features premium titanium alloy conduits alongside fully copper condensate tubes, providing strong resistance against internal degradation.
The external physical construction of these DC models is remarkably robust, utilizing heavy-duty 304 stainless steel for both the structural housing and the integrated water tray. Additionally, they incorporate an IPX4 waterproof rating and a specialized electrophoresis anti-corrosion fan to survive damp bilge environments. Despite delivering a powerful 9,000 BTU thermal exchange natively from the vessel’s battery banks, they maintain an incredibly low acoustic profile, operating at a remarkably quiet 42 to 52 decibels. To ensure maximum system protection and precise thermal regulation, each unit is equipped with high-low pressure switches, an electronic expansion valve, and five independent temperature sensors.
Intelligent Automation and Modern Energy Management
The latest generation of sub-12,000 BTU maritime units is not just physically compact; they are incredibly intelligent. In modern vessel design, digital integration is a strict requirement in today’s heavily connected operational environments. Advanced systems now feature sophisticated smart control modules that eliminate the need for manual, physical thermostat adjustments. These modern controllers seamlessly support WiFi application management, empowering boat owners and captains to monitor real-time temperature data, adjust compressor output, and control the raw water pump completely remotely via a smartphone or tablet. This level of intelligent automation ensures that the cabin is perfectly cooled before passengers even step aboard. Furthermore, this precision control maximizes overall energy efficiency, allowing smaller onboard generators or battery banks to maintain climate comfort without enduring unnecessary, continuous electrical strain.
Partner with ZhuoliMarine for Compact Climate Solutions
Founded in 1997, ZhuoliMarine has firmly established itself as a premier OEM and ODM manufacturer specializing in cutting-edge marine refrigeration equipment. As a technology-driven enterprise with over twenty-five years of dedicated expertise, they focus on the independent research, development, and production of highly reliable climate control systems. Their professional engineering team integrates intelligent frequency conversion, low-temperature heat transfer, and robust corrosion-resistant manufacturing into every unit. Operating from a modern production facility in China, ZhuoliMarine enforces strict quality control to guarantee that its equipment consistently outperforms expectations in the harshest global maritime environments.
If your shipbuilding or refitting operation requires exceptionally durable, space-efficient, and ultra-quiet cooling technology, contact ZhuoliMarine today. Explore their extensive portfolio of customizable maritime solutions, and let their technical experts deliver the perfect compact system tailored precisely to your vessel.
