Experiencing a sudden interruption in plastic extrusion is one of the most common hurdles in desktop manufacturing. When the molten path becomes restricted, the extruder motor begins to slip or make a clicking sound. Understanding the science behind these flow restrictions helps operators maintain their 3D filament materials in peak printing condition.
Resolving a persistent blockage requires a systematic approach to identifying where the material has solidified inside the print head. Simple mechanical adjustments and temperature calibrations can clear the majority of extrusion issues without damaging delicate hardware. This knowledge ensures that subsequent projects proceed with minimal downtime and maximum efficiency.
Identifying the Primary Causes of Heat Creep
Heat creep occurs when thermal energy travels upward from the heater block into the cold section of the print head. This premature heating causes the solid plastic strand to soften and expand before it actually reaches the melting zone. The resulting swollen plug creates massive friction against the inner walls of the ptfe tube.
Preventing heat creep requires efficient heat dissipation from the cooling fan mounted on the heatsink assembly. If this fan accumulates dust or spins too slowly, the thermal barrier fails to isolate the high temperatures. Ensuring constant, unrestricted airflow is crucial for keeping the incoming polymer solid and rigid.
Clearing Jams with the Cold Pull Method
The cold pull technique is a highly effective way to extract debris and charred plastic from deep within the nozzle. To perform this, the hotend is heated to extrusion temperature before a short piece of PLA filament is pushed inside manually. After allowing the nozzle to cool down to around ninety degrees, the plastic semi-solidifies.
Once the target low temperature is reached, the operator firmly pulls the plastic strand upward out of the assembly. This pull extracts a perfect mold of the internal nozzle cavity, dragging accumulated dust and burnt residue along with it. Repeating this process several times completely restores the internal pathway for clean extrusion.
Utilizing Nozzle Cleaning Needles Safely
When a complete blockage prevents any plastic from extruding, a specialized stainless steel acupuncture needle offers a direct physical solution. Heating the hotend to standard operating temperatures softens the stubborn plug blocking the tiny exit orifice. Gently inserting the thin needle from the bottom pushes the microscopic debris back into the melting chamber.
This manual intervention must be performed with extreme care to avoid scratching the delicate internal brass geometry. Scratching the inner walls of a nozzle creates micro-turbulences that can cause permanent stringing or future clogs. Applying steady, vertical pressure ensures the needle clears the path without compromising printing accuracy.
Preventing Clogs Caused by Dust and Debris
Over time, static electricity causes bare spools of plastic to attract microscopic airborne dust from the workshop environment. As the extruder pulls the dirty strand, this debris is carried directly into the narrow melting chamber of the hotend. Accumulating dust eventually carbonizes under high heat, forming a sticky restriction that halts smooth flow.
Snapping a simple foam filament cleaner onto the incoming line wipes away environmental particles before they reach the extruder. This inexpensive physical barrier keeps the internal mechanics pristine during long printing projects. Clean raw materials significantly extend the operational lifespan of expensive heating assemblies.
The Impact of Incorrect Retraction Settings
Retraction settings dictate how far the extruder pulls the plastic backward during non-printing movements to prevent stringing. However, setting the retraction distance too high pulls molten polymer into the cool zone of the throat. Once inside this cool region, the liquid plastic solidifies instantly, creating an immediate physical jam.
Optimizing these travel parameters in the slicer software ensures a clean transition between printing paths. Direct-drive extruders require very short retraction distances, usually under two millimeters, to function reliably. Calibrating these values keeps the molten transition zone exactly where it belongs.
Managing Abrasive Additives in Composite Materials
Composite materials containing physical fibers offer incredible structural advantages but present unique extrusion challenges. These suspended particles do not melt at the same temperature as the base polymer matrix, increasing overall flow resistance. Standard brass nozzles quickly succumb to the intense internal abrasion caused by these tough additives.
Using standard small-diameter nozzles with filled polymers frequently leads to immediate physical clogs as fibers cluster together. Swapping to a larger nozzle diameter allows composite strands to pass through the hotend effortlessly. This mechanical upgrade prevents particle aggregation while maintaining excellent extrusion throughput.
Exploring the Structural Benefits of Carbon Fiber

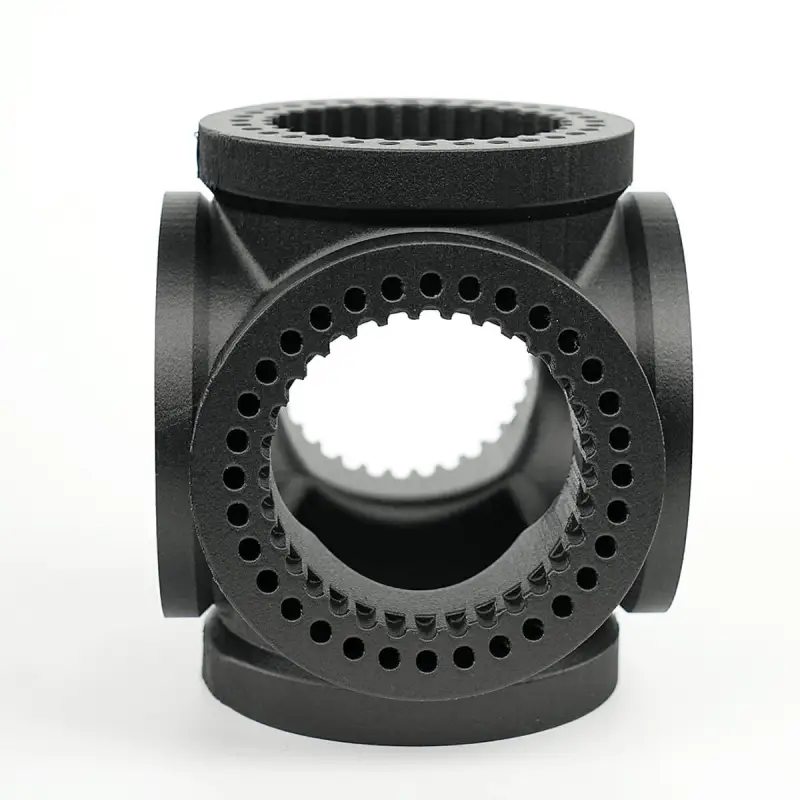

To meet the demand for industrial-grade structural parts, SUNLU produces a specialized carbon fiber composite material. This advanced formula incorporates high-strength carbon fibers directly into a premium organic polymer base, creating PLA-CF. The resulting material allows creators to produce functional components that resist bending and warping under mechanical loads.
Adding these fibers significantly enhances both the rigidity and dimensional stability of completed models compared to standard plastics. This specialized PLA filament is engineered to maintain tight tolerances, preventing printed parts from shrinking or shifting during the cooling phase. It serves as an excellent choice for brackets, housings, and mechanical assemblies.
Adjusting Hardware for Carbon Fiber Extrusion
Printing with the advanced carbon fiber blend from SUNLU requires a few adjustments to prevent hardware damage. Standard brass nozzles will wear down rapidly due to the abrasive nature of the embedded carbon strands. Installing a hardened steel or ruby-tipped nozzle ensures long-term dimensional consistency during continuous usage.
Operating within the recommended thermal parameters for both the nozzle and heated platform supports optimal composite flow and strong first-layer adhesion. These essential mechanical precautions allow users to leverage the structural benefits of composite printing while minimizing extrusion resistance and clogging risks.
Maintaining Consistent Printing Temperatures
Sustaining a stable thermal profile prevents the polymer from fluctuating between liquid and semi-solid states inside the hotend. If the heater block cools down suddenly during a print, the material viscosity increases rapidly, causing a jam. Regularly checking the heating cartridge and thermistor wiring prevents these sudden thermal drops.
Utilizing a silicone insulation sock around the heater block shields the hotend from cooling fan drafts. This simple accessory stabilizes internal temperatures, reducing the workload on the heating element. Consistent thermal control ensures that every layer of 3D filament materials melts uniformly.
Conclusion
Resolving hotend clogs is a fundamental skill that transforms the reliability of any desktop manufacturing setup. Understanding the physical causes behind heat creep and mechanical blockages empowers makers to maintain a smooth workflow. Utilizing robust materials and optimizing machine parameters guarantees consistent, trouble-free printing results.
